SPECIFICATIONS

• Battery Capacity: 4000 mAh

• Certifications: CE, FCC

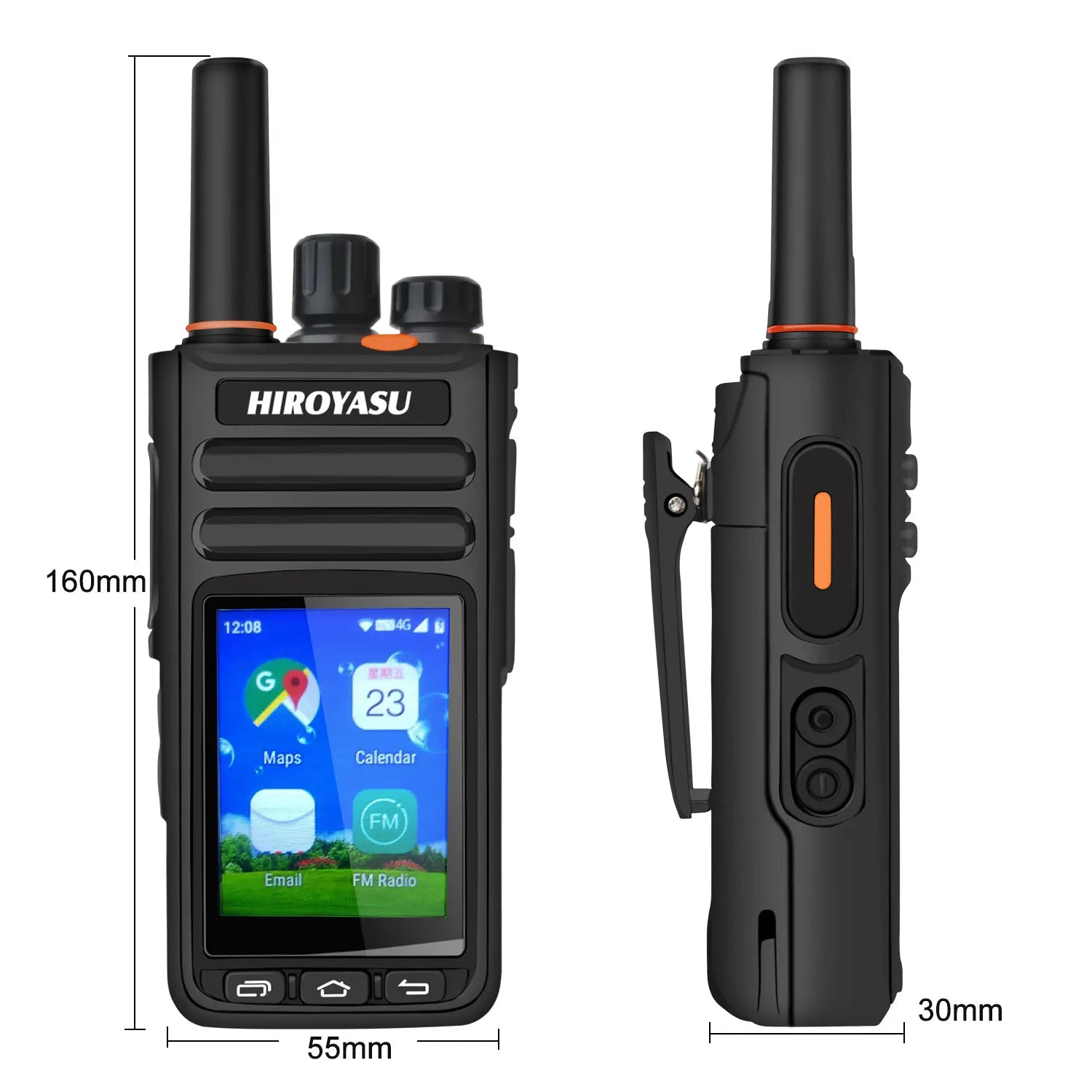

• Dimensions: 160 x 55 x 30 mm

• Weight: 200 g (including battery and antenna)

• Display: 2.4” TFT touchscreen (320 x 240 resolution)

• Material: Durable polymer housing

• Operating System: Android 9.0

• Memory: 2GB RAM + 16GB ROM (expandable up to 32GB)

• Network Compatibility: 2G, 3G, 4G LTE (multi-band support)

• GPS/Beidou Positioning: Integrated

• Waterproof Rating: IP54 (dust and splash-resistant)

• Operating Temperature: -20°C to 85°C

Key Features:

1. Multi-Network Connectivity:

   • 2G (GSM), 3G (WCDMA), 4G LTE (FDD/TDD bands)

   • Wi-Fi and Bluetooth support

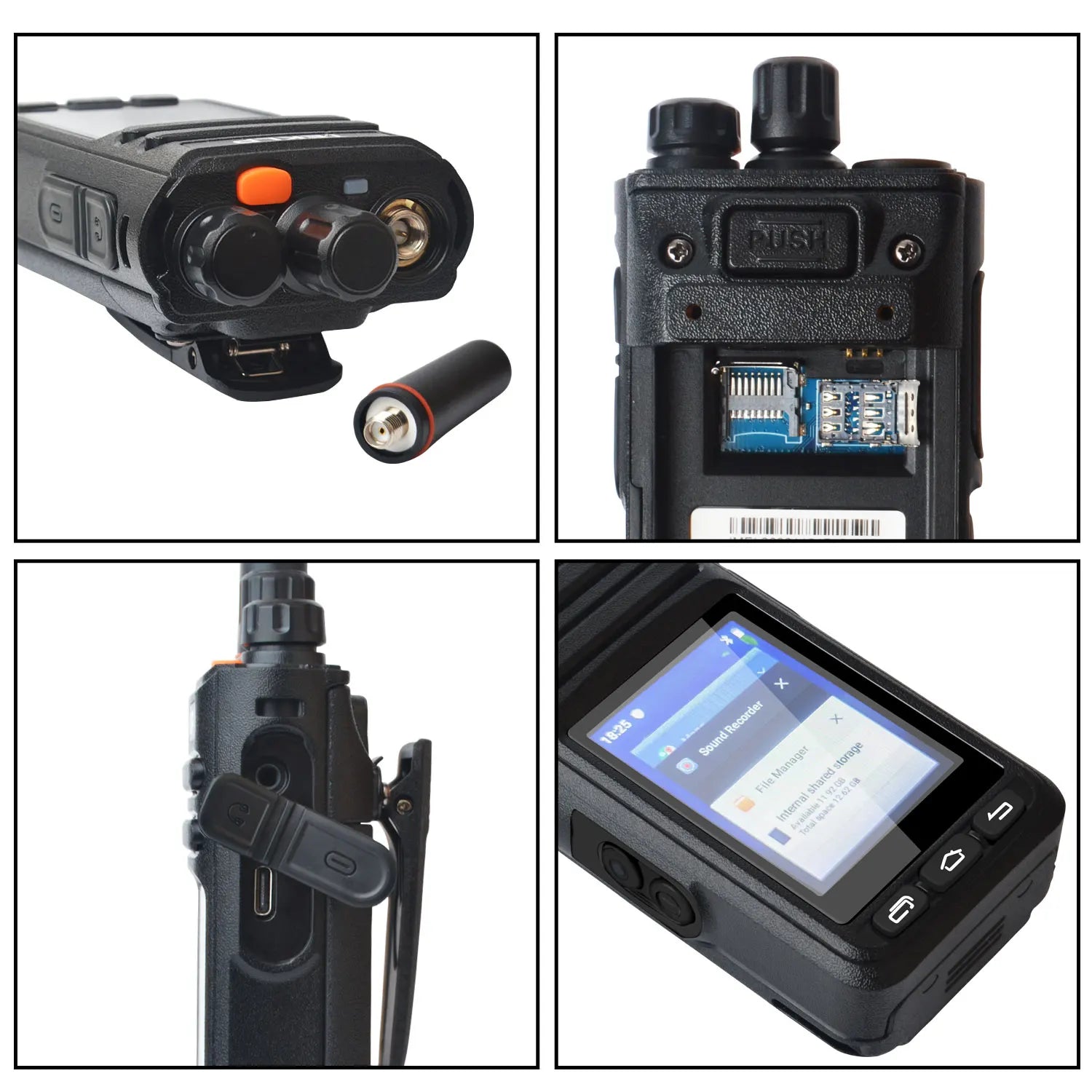

   • External removable antenna for enhanced signal reception

2. Android-Powered Functionality:

   • Pre-installed Zello PoC app for push-to-talk communication

   • Access to Google Play Store for app downloads

   • Phone calling, messaging, and FM radio capabilities

3. Advanced Communication Tools:

   • Voice recording and playback

   • Programmable PTT keys and side-key customization

   • Multi-language system support

4. Durability and Usability:

   • USB Type-C fast charging

   • 3.5mm earphone jack and loud 2W speaker output

   • Extended battery life for prolonged use

Technical Specifications:

• Processor: Quad-core 1.3 GHz 64-bit ARM

• Cellular Bands Supported:

  • 2G: 850/900/1800/1900 MHz

  • 3G: B1/B2/B5/B8

  • 4G FDD: B1/B3/B5/B7/B8/B20/B28A/B28B

  • 4G TDD: B38/B39/B40/B41

• Sensors: GPS, Beidou

• SIM Type: Nano-SIM

• Transmit Power: 23–25 dBm

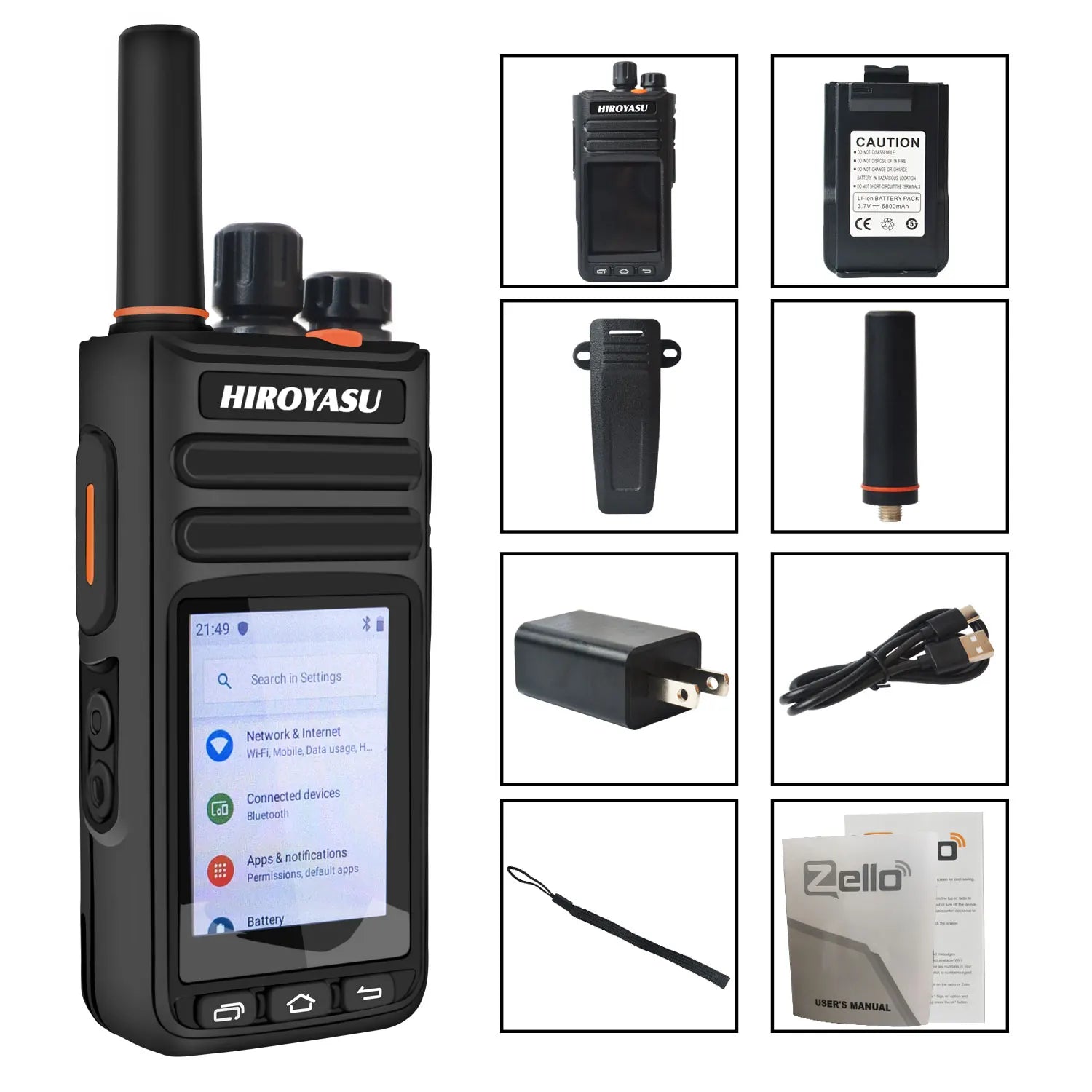

Package Includes:

• 1 × Communication device

• 1 × Rechargeable battery pack

• 1 × 4G multi-band antenna

• 1 × USB-C charging cable

• 1 × Universal AC adapter (100–240V)

• 1 × Hand strap and belt clip

• 1 × User manual
